D2 - Desiccant Air Dryer

D2 - Desiccant Air Dryer

SKU: 280-120
Regular price
$ 1,543.75
Sale price
$ 1,543.75
This product is available for pre-order

DESCRIPTION

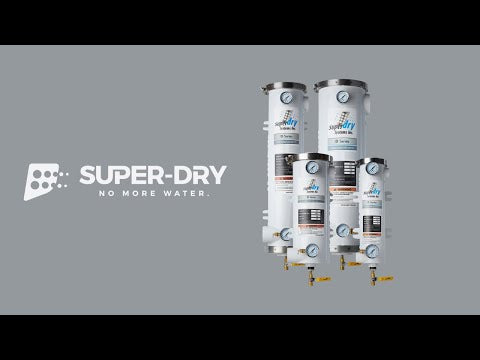

The D Series is a single tower desiccant air dryer designed for point-of-use and intermittent flow applications.   The wet compressed air enters at the inlet, is first separated due to the off-set inlet creating centrifugal separation to trap water droplets, and subsequently passes around a polypropylene coalescer element, felt pads, and stainless-steel grids to remove solid particulates.  The air flows upward through a sewed filtration desiccant bag that acts as a sponge to absorb moisture.  Finally, the air flows again through the second stage of filtration to eliminate any desiccant dust.  This 3-stage system efficiently provides separation, filtration, and drying. It is time to replace the cartridge when the Moisture Gauge indicates saturation.  The replacement is fast and mess-free, thanks to the US stainless-steel clamp.  The rust-free powder-coated aluminum housing is made in Canada and includes built-in brackets.

SPECS

  • INLET / OUTLET PORTS: 1-1/2'' NPT
  • AIRFLOW @ 100 PSIG: 150 SCFM
  • MAXIMUM INLET PRESSURE: 150 PSI
  • MAXIMUM INLET TEMPERATURE: 100°F (38°C)
  • PRE-FILLED WITH DESICCANT CARTRIDGE
  • PRESSURE GAUGES, SAFETY VALVE, AND BALL VALVE INCL.
  • UNIT WEIGHT: 50 LB
