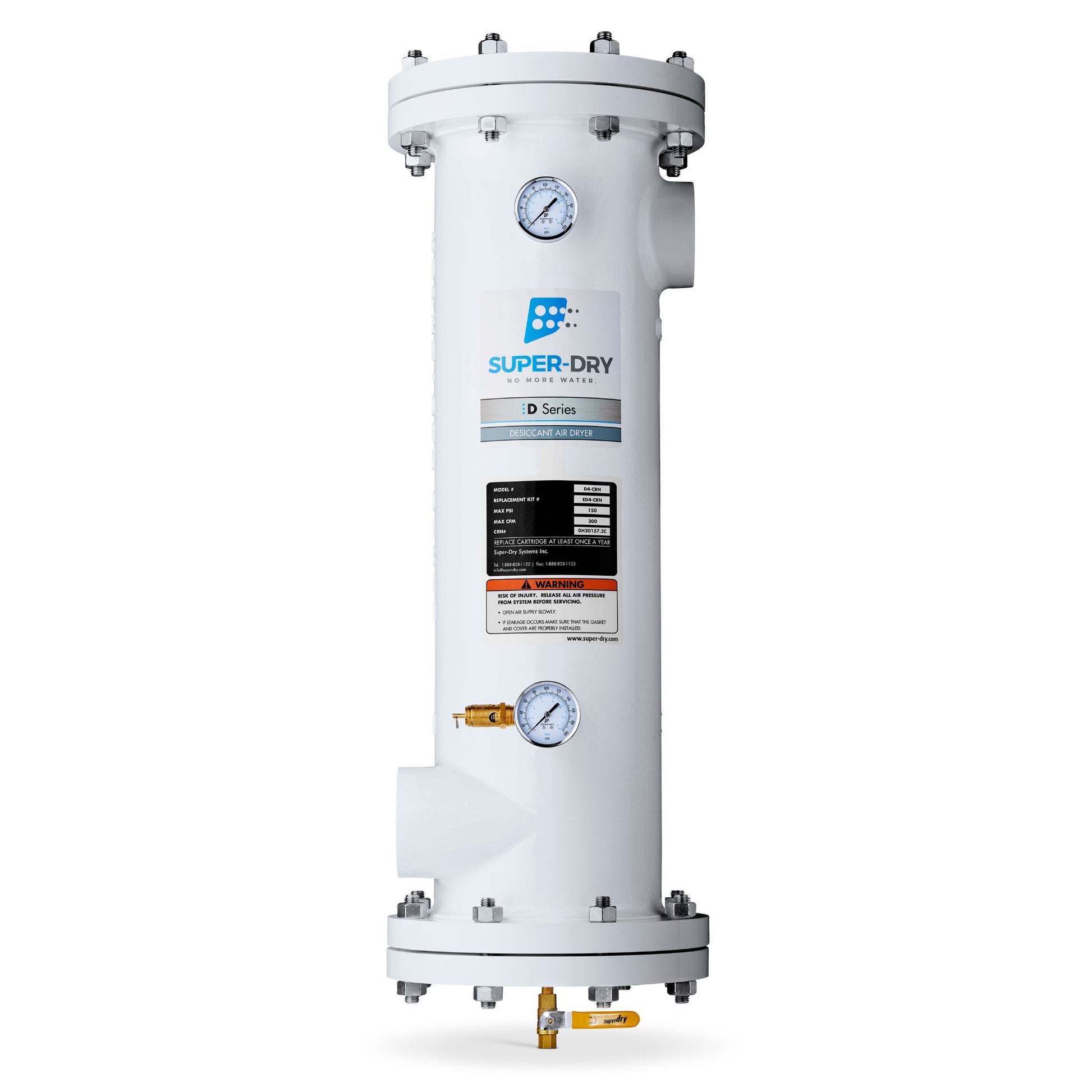

DESCRIPTION

The D Series is a single-tower desiccant air dryer designed for point-of-use applications.   The wet compressed air enters the inlet, is first separated due to the off-set inlet creating centrifugal separation to trap water droplets, and subsequently passes around a polypropylene coalescer element, felt pads, and stainless-steel grids to remove solid particulates.  The air flows upward through a sewed filtration desiccant bag that acts as a sponge to absorb moisture.  Finally, the air flows again through the second filtration stage to eliminate any desiccant dust.  This 3-stage system efficiently provides separation, filtration, and drying. It is time to replace the cartridge when the Moisture Gauge indicates saturation.  The rust-free powder-coated aluminum housing is made in Canada and includes built-in brackets. CRN-Registered for all Canadian Provinces.

SPECS

• INLET / OUTLET PORTS: 3'' NPT

• AIRFLOW @ 100 PSIG: 300 SCFM

• MAXIMUM INLET PRESSURE: 150 PSIG

• MAXIMUM INLET TEMPERATURE: 100°F (38°C)

• PRE-FILLED WITH DESICCANT CARTRIDGE

• PRESSURE GAUGES, SAFETY VALVE, AND BALL VALVE INCL.

• UNIT WEIGHT: 125 LBS

• CRN#: OH20157.2C
