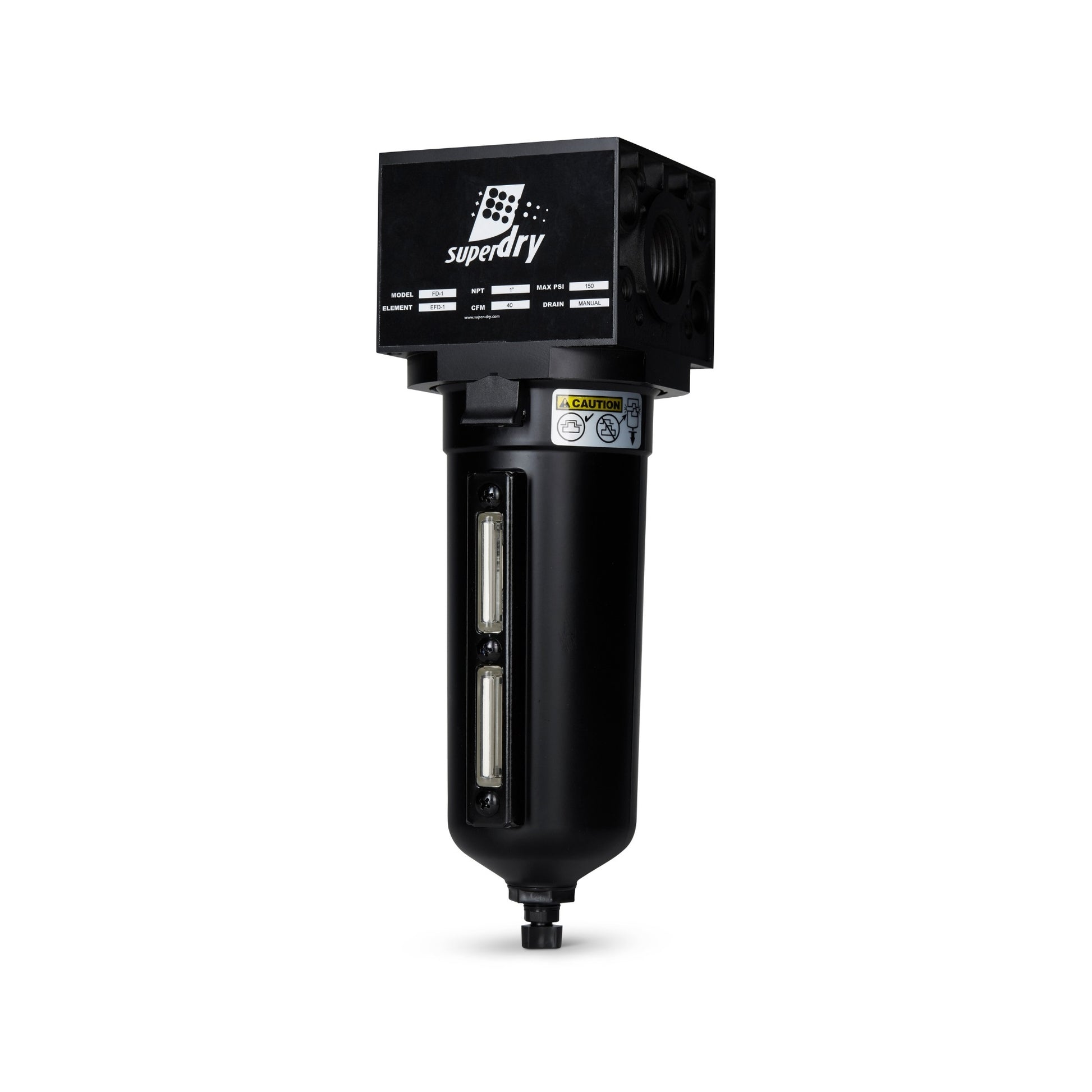

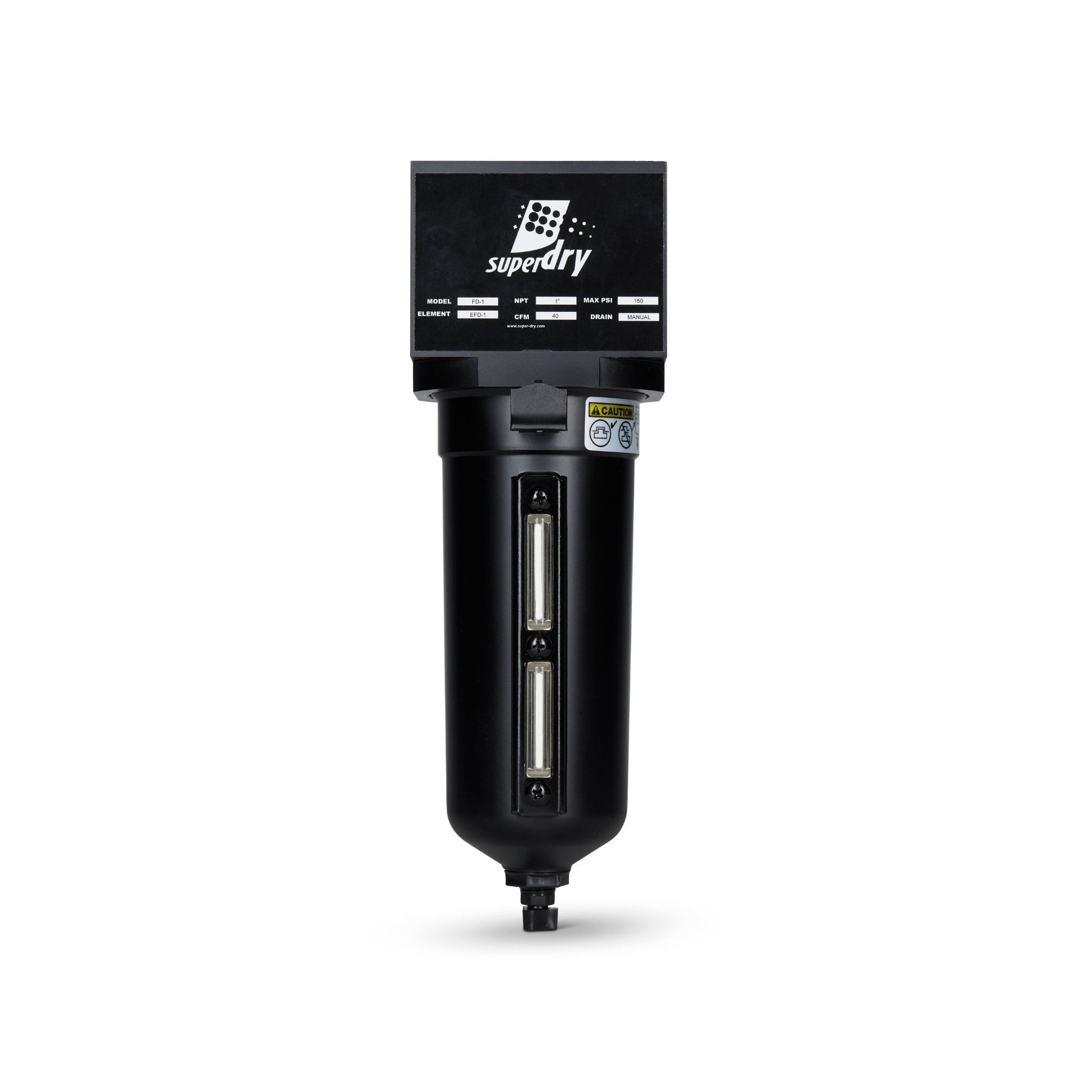

FD1 - Desiccant Filter
SKU: 300-121
Regular price
$286.25 CAD
Sale price
$286.25 CADSale
We have 56 in stock.
DESCRIPTION

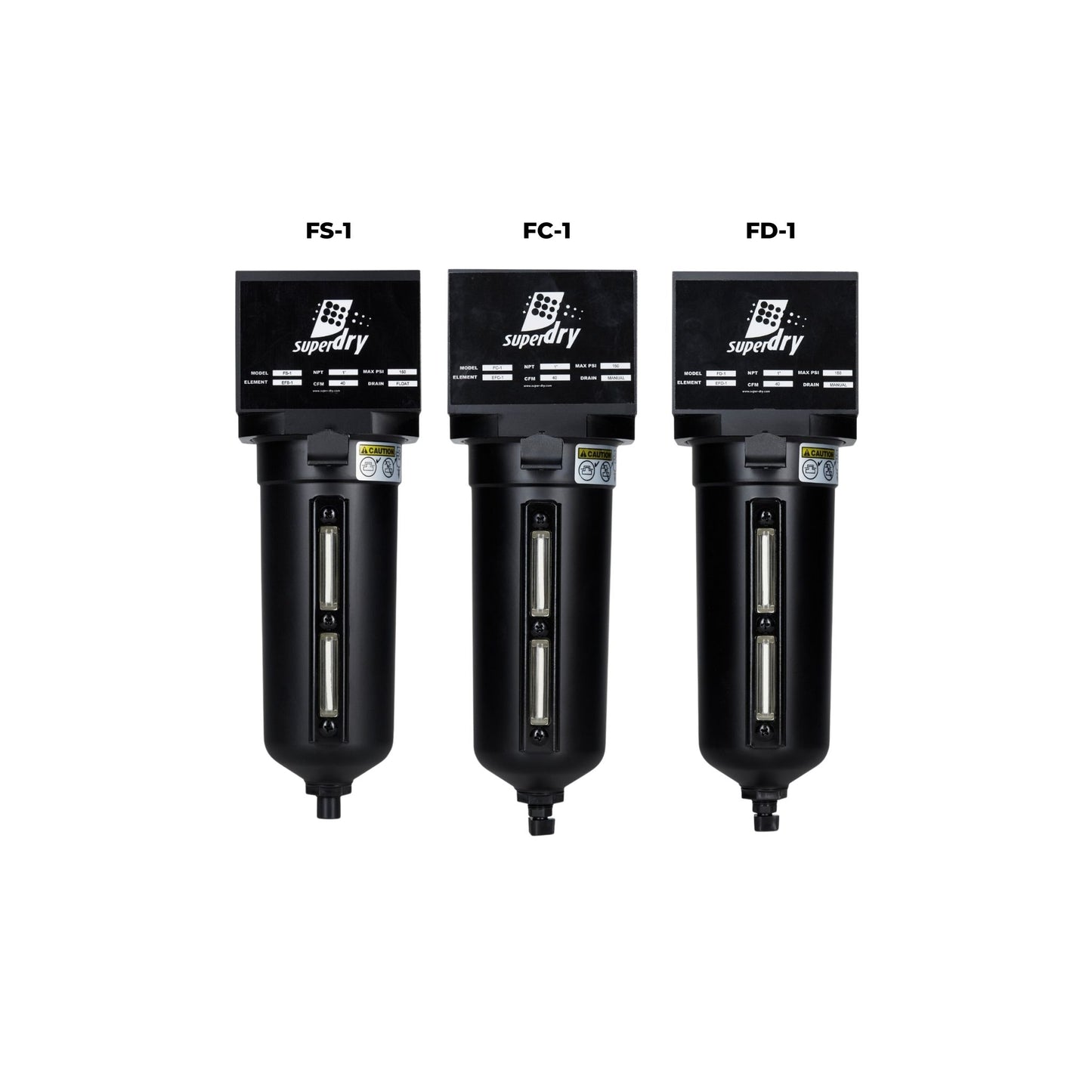

The F Series Filter effectively reduces contamination in your airstream, protecting critical processes and valuable equipment, while maintaining a low-pressure drop throughout the life of the filter element to ensure an efficient air preparation of the air for point-of-use applications. The filters are offered in two sizes. The ½’’ model has a polycarbonate bowl while the 1’’ model has a metal bowl. This series offers three levels of filtration. The FS model is the first stage of the separation of liquids. This model comes with an internal float drain. The FC model is the second stage for oil carry-over filtration. Finally, the FD model has a filtration element with encapsulated activated alumina to remove moisture.
SPECS
INLET / OUTLET PORTS: 1" NPT
AIR FLOW @ 100 PSIG: 40 SCFM
MAXIMUM INLET PRESSURE: 150 PSIG
MAXIMUM INLET TEMPERATURE: 100°F (38°C)
DRAINAGE: MANUAL DRAIN
FILTRATION OF 5 MICRON
PDF
DESCRIPTION
The F Series Filter effectively reduces contamination in your airstream, protecting critical processes and valuable equipment, while maintaining a low-pressure drop throughout the life of the filter element to ensure an efficient air preparation of the air for point-of-use applications. The filters are offered in two sizes. The ½’’ model has a polycarbonate bowl while the 1’’ model has a metal bowl. This series offers three levels of filtration. The FS model is the first stage of the separation of liquids. This model comes with an internal float drain. The FC model is the second stage for oil carry-over filtration. Finally, the FD model has a filtration element with encapsulated activated alumina to remove moisture.
SPECS
INLET / OUTLET PORTS: 1" NPT
AIR FLOW @ 100 PSIG: 40 SCFM
MAXIMUM INLET PRESSURE: 150 PSIG
MAXIMUM INLET TEMPERATURE: 100°F (38°C)
DRAINAGE: MANUAL DRAIN
FILTRATION OF 5 MICRON
PDF
