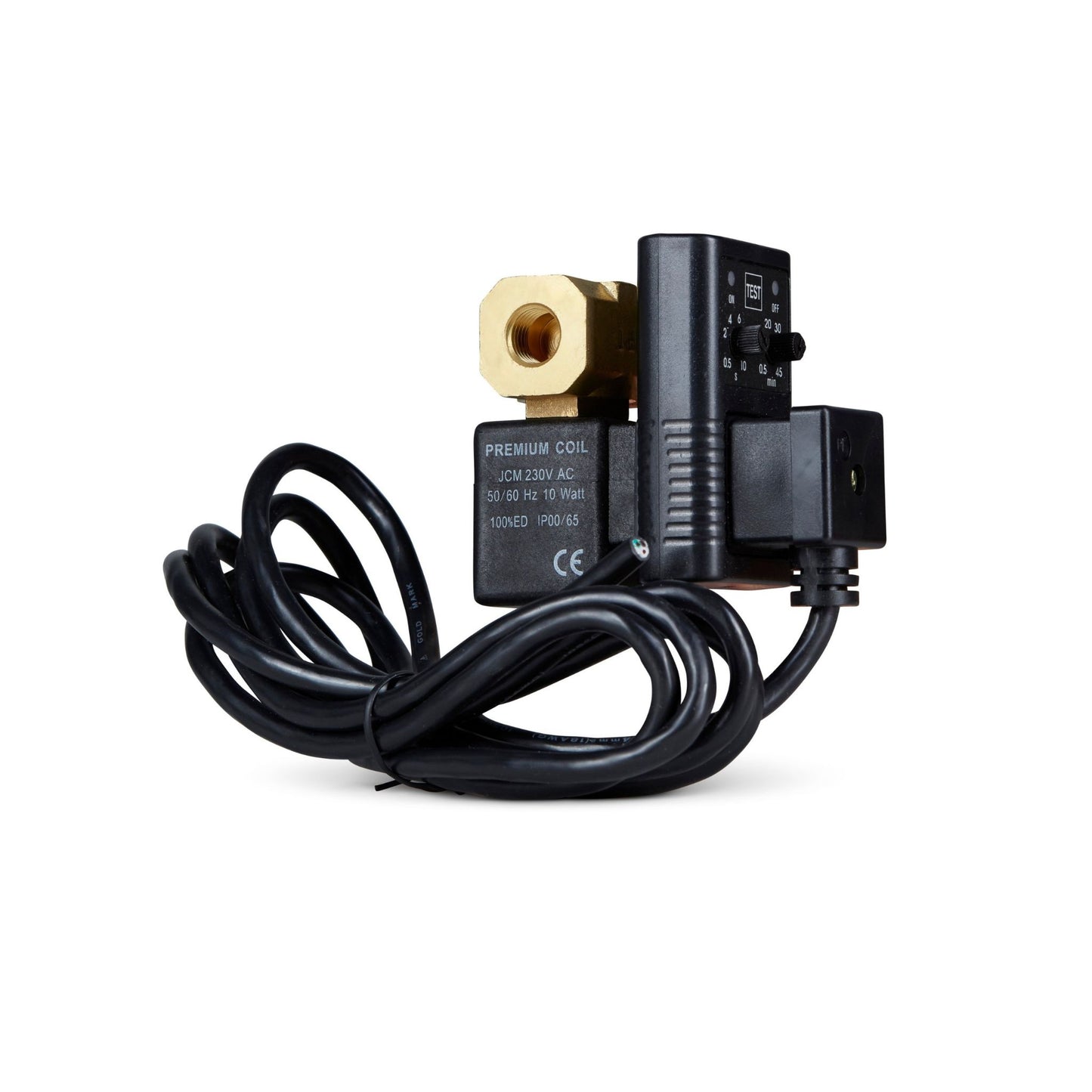

TD 1/4 220V - Electronic Timer Drain
TD 1/4 220V - Electronic Timer Drain
SKU:320-230
Low stock: 7 left
Super-Dry products deliver reliable results when installed under proper system conditions. If you’re unsure about your setup, we recommend having a local compressed air specialist review your system before installation. Super-Dry does not provide on-site support.
We usually process standard orders within 1-2 business days; Express shipping does not accelerate the order processing.
DESCRIPTION
The Super-Dry TD-1/4 is designed to provide a solution for the automatic draining of filters, separators, receivers, drip legs and other compressed air system components where condensate and contaminants collect.
SPECS
PRESSURE RANGE 0 - 230 PSI
SUPPLY VOLTAGE 220 VAC/DC 50/60Hz
MEDIUM TEMPERATURE 34 - 131 °F
AMBIENT TEMPERATURE 34 - 131 °F
TIMER CYCLE RANGE (ON / OFF) 0.5 - 10 seconds / 0.5 - 45 minutes
TIMER CYCLE INDICATION Bright LED illumination
TEST FEATURE Yes
VALVE TYPE 2/2 way, direct acting
INLET/OUTLET CONNECTIONS 1/4″
VALVE HOUSING MATERIAL Brass
